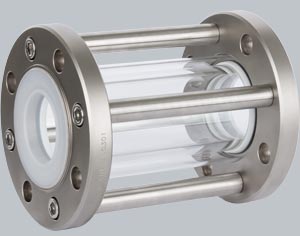

Tubular Sight Glasses SSP-T
Fully lined Tubular Sight Glasse SSP-T as reliable flow indicator for process media in either liquid or gaseous state.
Main features
• 360° circumferential visibility over the entire length
• Cavity-free at horizontal and vertical installation
• Additional safety by PMMA protection tube
• Easy cleaning and maintenance |
|
 |
Technical data
| Version |
DIN / ISO |
ANSI |
| Sizes |
DN15 – DN150 |
½" – 6" |
Flanges
|
EN 1092-1 B1
PN16 |
ASME B16.5
ANSI 150lbs |
| Face to face |
EN 558-1 series 1 |
ASME B16.10 |
| Flanges |
1.4404/PFA |
AISI 316L/PFA |
| Tie bars |
1.4404 |
AISI 316L |
| Lining |
PFA |
| Glass cylinder |
Borosilicate 3.3 |
| Safety shield |
PMMA-XT (Acrylic glass) |
| Gaskets |
PTFE/FPM insert or PTFE/VMQ |
| Operating conditions |
(depending on material selection) |
| Pressure |
1mbar up to 16 bar |
| Temperature |
-40°C up to +160°C |
Options
| Flanges |
Titanium Grade 2, Hastelloy C |
| Lining |
PFA-AS (conductive), PVDF, PP, ETFE |
| Gaskets |
PTFE-T |
| Flow indication |
visual indication for gases (PTFE ribbon) |
| Flange connections |
PN40, ANSI 150lbs, ANSI 300lbs, JIS 10K |
Detailed specification/options acc. to the data sheet.
|
|
