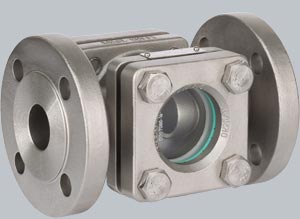

Sight Glasses SST
Sight Glasses fully made of stainless steel as reliable flow indicators for process media in either liquid or even gaseous state.
Main features
• Heavy-duty, proven construction -
maintenance-free
• Horizontal or vertical installation
• For liquids, gases and steam
• Large observation opening
• Standard drip ledge indicating even lowest flow |
|
 |
Technical data
| Version |
DIN / ISO |
ANSI |
| Sizes |
DN15 – DN150 |
½" – 6" |
Flanges
|
DIN EN 1092-1 B1
PN16 |
ASME B16.5 RF
ANSI 150lbs |
| Buttwelding ends |
DIN EN 12982 |
- |
| Face to face |
EN 558-1 series 1 |
ASME B16.10 |
| Body/cover |
Stainless steel casting 1.4408 |
AISI 316 CF-8M |
| Buttwelding ends |
Stainless steel casting 1.4404 |
AISI 316L CF-3M |
| Glass plates |
Borosilicate 8488 acc. to DIN 7080 |
| Gasket (primary) |
PTFE-T |
| Gasket (outer) |
C-4400 asbestos-free |
| Operating conditions |
(depending on material selection) |
| Pressure |
1mbar up to 16 bar (40 bar) |
| Temperature |
-40°C up to +200°C (-40°F up to +392°F) |
Options
| Pressure rating |
PN40, ANSI 300lbs |
| Flanges |
with groove acc. to DIN 2512 Form N |
| Glass |
Quartz glass, metal-reinforced glasses |
| Glass protection |
FEP-foil |
| Flow indication |
visual indication for gases (PTFE ribbon, rotor) |
Detailed specification/options acc. to the data sheet.
|
|
