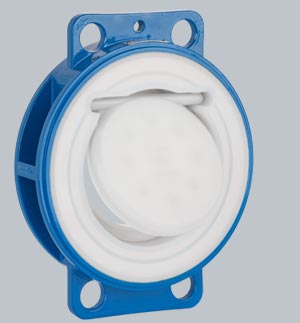

Swing Check Valves SSC
Fully lined Swing Check Valves for safe non-return flow control of corrosive process media.
Main features
• Wafer-style body, two- and three-piece, DIN/ANSI combined
• Centering lugs for safe installation
• Tilted disc (to shut by gravity even when pipe isn't completely level)
• Self-retaining disc, no counter flanges needed to hold the disc in place
• Horizontal or vertical installation
• Integrated sealing lip (to seal at low differential pressures) |
|
 |
Technical data
| Version |
DIN / ISO |
ANSI |
| Sizes |
DN40 – DN600 |
1½" – 24" |
Flanges
|
EN 1092-1 B1
PN10/16 |
ASME B16.5 RF
ANSI 150lbs |
| Face to face |
EN 558-1 series 20 |
ASME B16.10 |
| Body |
Cast steel 1.0619 |
ASTM A216 WCB |
| Lining |
PFA, PFA-AS (conductive) |
| Valve disc |
PFA, PFA-AS-encapsulated (conductive) |
| Operating conditions |
(depending on material selection) |
| Pressure |
up to 10 bar |
| Temperature |
-40°C up to +200°C |
Options
| Body |
Stainless steel casting 1.4408 |
AISI 316 CF-8M |
| Valve disc |
SS316L, Titanium Grade 2, Hastelloy C |
Detailed specification/options acc. to the data sheet.
|
|
